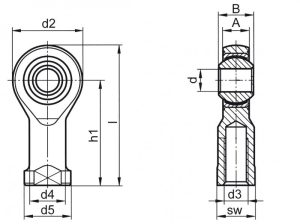

Connecting parts – Hinge Head : We have Hinge Heads available in many different sizes, diameters and thicknesses and can offer them in Steel and Stainless steel 316. We offer various options and adjustments to meet your requirements.
| H1 | L | D2 | D3 | D5 | D | A | B |
|---|---|---|---|---|---|---|---|
| 27 | 36 | 18 | M5 x 0,8 | 11 | 5 | 6 | 8 |
| 30 | 40 | 20 | M6 x 1 | 13 | 6 | 6,75 | 9 |
| 36 | 48 | 24 | M8 x 1,25 | 16 | 8 | 9 | 12 |
| 43 | 57 | 28 | M10 x 1,5 | 19 | 10 | 10,5 | 14 |
| 57 | 75 | 36 | M14 x 2 | 25 | 14 | 13,5 | 19 |
