We can offer you a vast variety of clevises to fit your needs, including carbon steel, chrome plated and aluminum clevises
The clevises are normally offered without Clip Bolts. If you want these Clips please indicate this in your request.

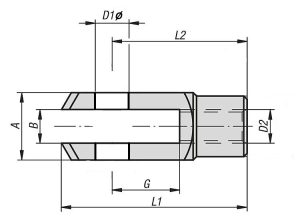

| D1 Ø | G mm | A mm | B mm | L1 mm | L2 mm | D2 mm |
|---|---|---|---|---|---|---|
| 4 | 8 | 8 | 4 | 21 | 16 | M3 |
| 4 | 8 | 8 | 4 | 21 | 16 | M4 |
| 5 | 10 | 10 | 5 | 26 | 20 | M5 |
| 8 | 16 | 16 | 8 | 42 | 32 | M8 |
| 10 | 20 | 20 | 10 | 52 | 40 | M10 |
| 14 | 28 | 27 | 14 | 72 | 56 | M14*1,5 |
| 25 | 50 | 50 | 25 | 132 | 100 | M24*2 |
| 8 | 32 | 16 | 8 | 58 | 48 | M8 |
