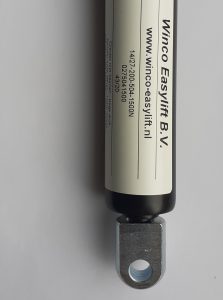

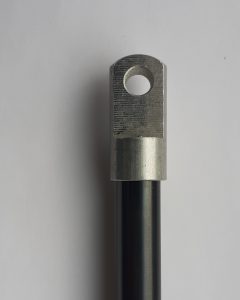

Connecting Parts – Eyes : The eyes are the most common connection parts on a Gas Springs. They are characterized by a high stability and strength. We have these eyes available in many different sizes, diameters and thicknesses and can offer them in Steel and Stainless steel 316. We offer various options and adjustments to meet your requirements.
| SW | Ø | L1 | L3 | Ø2 | D1 | Thread | Part. Nr: |
|---|---|---|---|---|---|---|---|
| 3.0 | 4.1 | 11.0 | 5.0 | 7.0 | 3.0 | M3 | 304111 |
| 3,0 | 4.1 | 12.0 | 6.0 | 8.0 | 4.0 | M4 | 304112 |
| 3.0 | 6.2 | 16.0 | 9.0 | 11.0 | 6.0 | M5 | 306216 |
| 6.0 | 6.2 | 16.0 | 10.0 | 10.0 | 6.0 | M5 | 606216 |
| 3.0 | 8.2 | 16.0 | 9.0 | 11.0 | 6.0 | Ms | 308216 |
| 5.0 | 6.2 | 23.0 | 11.5 | 16.0 | 8.0-10.0 | M8 | 506223 |
| 5,0 | 8.2 | 23.0 | 12.5 | 16.0 | 8.0-10.0 | M8 | 508223 |
| 5.0 | 8.2 | 23.0 | 11.5 | 19.0 | 8.0-10.0 | Ø8 | 508223115 |
| 10.0 | 8.2 | 20.0 | 20.0 | 16.0 | 8.0-10.0 | M8 | 108220 |
| 10.0 | 6.2 | 20.0 | 20.0 | 16.0 | 8.0-10.0 | M8 | 106220 |
| 10.0 | 10.2 | 20.0 | 20.0 | 16.0 | 8.0-10.0 | M8 | 1010220 |
| 8.0 | 8.2 | 20.0 | 10.0 | 16.0 | 8.0-10.0 | M8 | 808220 |
| 12.0 | 8.2 | 20.0 | 10.0 | 16.0 | 8.0-10.0 | M5, M8 | 128220 |
| 8.0 | 8.2 | 27.0 | 12.0 | 16.0 | 8.0-10.0 | M8 | 808227 |
| 8.0 | 6.2 | 20.0 | 10.0 | 16.0 | 8.0-10.0 | M8 | 806220 |
| 18.0 | 8.2 | 25.0 | 25.0 | 18.0 | 8.0-14.0 | M8, M10 | 188225 |
| 18.0 | 10.2 | 25.0 | 25.0 | 18.0 | 8.0-14.0 | M8, M10 | 1810225 |
| 14,0 | 8.2 | 20.0 | 20.0 | 19.0 | 8.0-14.0 | M8, M10 | 148220 |
| 12.0 | 8.2 | 25.0 | 12.0 | 19.0 | 10.0-14.0 | M8, M10 | 128225 |
| 12.0 | 10.2 | 25.0 | 12.0 | 19.0 | 10.0-14.0 | M8, M10 | 1210225 |
| 10.0 | 8.2 | 30.0 | 16.0 | 19.0 | 12.0-16.0 | M10 | 108230 |
| 12.0 | 12.2 | 25.0 | 11.0 | 19.0 | 12.0-14.0 | M8, M10 | 1212225 |
| 10,0 | 8,5 | 30.0 | 16.0 | 19.0 | 12.0-16.0 | M10 | 108530 |
| 10.0 | 10.2 | 30.0 | 16.0 | 19.0 | 10.0-16.0 | M10 | 1010230 |
| 10.0 | 10.5 | 30.0 | 16.0 | 19.0 | 12.0-16.0 | M10 | 1010530 |
| 14.0 | 14.2 | 40.0 | 20.0 | 20.0 | 16.0-20.0 | M14 | 1414240 |

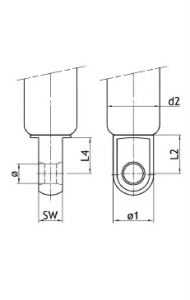

| SW | Ø | L2 | L4 | Ø1 | D2 | Part. Nr: |
|---|---|---|---|---|---|---|
| 3 | 4,1 | 8 | 7 | 8 | 12 | 3418 |
| 5 | 6,2 | 16 | 15 | 15-17 | 19-22 | 56216 |
| 5 | 8,2 | 16 | 15 | 15-17 | 19-22 | 58216 |
| 3 | 6,2 | 12 | 10,5 | 11 | 15 | 36212 |
| 3 | 8,2 | 12 | 10,5 | 11 | 15 | 38212 |
| 10 | 8,2 | 9,5 | 9,5 | 15 | 19 | 108295 |
| 10 | 8,2 | 12 | 11 | 17 | 22 | 108212 |
| 10 | 8,2 | 16 | 15 | 15-17 | 19-22 | 108216 |
| 10 | 6,2 | 16 | 15 | 15-17 | 19-22 | 106216 |
| 10 | 10,2 | 16 | 15 | 15-17 | 19-22 | 1010216 |
| 8 | 6,2 | 16 | 15 | 15-17 | 19-22 | 86216 |
| 8 | 8,2 | 16 | 15 | 15-17 | 19-22 | 88216 |
| 12 | 8,2 | 16 | 15 | 17 | 22 | 128216 |
| 12 | 8,2 | 13 | 12 | 20 | 28 | 128213 |
| 12 | 10,2 | 13 | 12 | 20 | 28 | 1210213 |
| 10 | 8,2 | 13 | 12 | 20 | 28 | 108213 |
| 6 | 8,2 | 13 | 12 | 20 | 28 | 68213 |
| 12 | 12,2 | 13 | 12 | 20 | 28 | 1212213 |
| 10 | 8,2 | 16 | 15 | 20 | 28 | 108216 |
| 10 | 8,5 | 16 | 15 | 20 | 28 | 108516 |
| 10 | 10,2 | 16 | 15 | 17 | 28 | 1010216 |
| 10 | 10,5 | 16 | 15 | 20 | 28 | 1010516 |
| 8 | 10,2 | 16 | 15 | 16 | 28 | 810216 |
| 8 | 8,2 | 16 | 15 | 20 | 28 | 88216 |
| 12 | 9,2 | 16 | 15 | 20 | 28 | 129216 |
